Overview

Questions

  • How can I computationally manipulate simplicial complexes?

Objectives

  • Operate simplicial complexes in a computational environment
  • Create Vietoris-Rips and Alpha complexes from diverse datasets
  • Apply persistent homology to obtain barcode and persistence diagrams

Introduction to GUDHI and Simplicial Homology

Welcome to this lesson on using GUDHI and exploring simplicial homology. GUDHI (Geometry Understanding in Higher Dimensions) is an open-source that provides algorithms and data structures for the analysis of geometric data. It offers a wide range of tools for topological data analysis, including simplicial complexes and computations of their homology.

To begin, we will import the necessary packages.

PYTHON

from IPython.display import Image     # Import the Image function from IPython.display to display images in Jupyter environments.
from os import chdir                  # Import chdir from os module to change the current working directory.
import numpy as np                    # Import numpy library for working with n-dimensional arrays and mathematical operations.
import gudhi as gd                    # Import gudhi library for computational topology and computational geometry.
import matplotlib.pyplot as plt       # Import pyplot from matplotlib for creating visualizations and graphs.
import argparse                       # Import argparse, a standard library for writing user-friendly command-line interfaces.
import seaborn as sns                 # Import seaborn for data visualization; it's based on matplotlib and provides a high-level interface for drawing statistical graphs.
import requests                       # Import requests library to make HTTP requests in Python easily.

Example 1: SimplexTree and Manual Filtration

The SimplexTree data structure in GUDHI allows efficient manipulation of simplicial complexes. You can demonstrate its usage by creating a SimplexTree object, adding simplices manually, and then filtering the complex based on a filtration value.

Create SimplexTree

With the following command, you can create a SimplexTree object named st, which we will use to add the information of your filtered simplicial complex:

PYTHON

st = gd.SimplexTree()  ##

Insert simplex

In GUDHI, you can use the st.insert() function to add simplices to a SimplexTree data structure. Additionally, you have the flexibility to specify the filtration level of each simplex. If no filtration level is specified, it is assumed to be added at filtration time 0.

PYTHON

#insert 0-simplex (the vertex)
st.insert([0])
st.insert([1])

OUTPUT

True

Now let’s insert 1-simplices at different filtration levels. If adding a simplex requires a lower-dimensional simplex to be present, the missing simplices will be automatically completed.

Here’s an example of inserting 1-simplices into the SimplexTree at various filtration levels:

PYTHON

# Insert 1-simplices at different filtration levels
st.insert([0, 1], filtration=0.5)
st.insert([1, 2], filtration=0.8)
st.insert([0, 2], filtration=1.2)

OUTPUT

True
Callout

Note

If any lower-dimensional simplices are missing, GUDHI’s SimplexTree will automatically complete them. For example, when inserting the 1-simplex [1, 2] at filtration level 0.8, if the 0-simplex [1] or [2] was not already present, GUDHI will add it to the SimplexTree.

Now, you can use the st.num_vertices() and st.num_simplices() commands to see the number of vertices and simplices, respectively, in your simplicial complex stored in the st SimplexTree object.

PYTHON

num_vertices = st.num_vertices()
num_simplices = st.num_simplices()

print("Number of vertices:", num_vertices)
print("Number of simplices:", num_simplices)

OUTPUT

Number of vertices: 3
Number of simplices: 6

Persistence

The st.persistence() function in GUDHI’s SimplexTree is used to compute the persistence diagram of the simplicial complex. The persistence diagram provides a compact representation of the birth and death of topological features as the filtration parameter varies.

Here’s an example of how to use st.persistence():

PYTHON

# Compute the persistence diagram
persistence_diagram = st.persistence()

# Print the persistence diagram
for point in persistence_diagram:
    birth = point[0]
    death = point[1]
    print("Birth:", birth)
    print("Death:", death)
    print()

OUTPUT

Birth: 0
Death: (0.0, inf)

Birth: 0
Death: (0.0, 0.5)

Plot the persistence diagram

The gd.plot_persistence_diagram(persistence_diagram, legend=True) is used to plot a persistence diagram using the Gudhi library in Python. A persistence diagram is a visual representation of the topological features captured by the simplicial homology computation.

The plot_persistence_diagram() function takes the persistence diagram as input and generates a plot to visualize this information. The legend=True argument enables the display of a legend, which provides additional information about the different types of topological features represented in the diagram.

PYTHON

gd.plot_persistence_diagram(persistence_diagram,legend=True)

OUTPUT

<AxesSubplot:title={'center':'Persistence diagram'}, xlabel='Birth', ylabel='Death'>

Persistence Diagram

Plot the barcode

The code snippet gd.plot_persistence_barcode(persistence_diagram, legend=True) is used to generate a persistence barcode plot using the Gudhi library in Python. A persistence barcode provides a different way to visualize the evolution of topological features captured by the persistence diagram.

In topological data analysis, a persistence barcode represents the lifespan of topological features as intervals on a real number line. Each interval corresponds to a topological feature, and its length represents the duration of the feature’s existence.

The plot_persistence_barcode() function takes the persistence diagram as input and generates a plot that visualizes these intervals. The bars in the barcode plot represent the topological features, and their lengths indicate the duration of their existence.

PYTHON

gd.plot_persistence_barcode(persistence_diagram,legend=True)

OUTPUT

<AxesSubplot:title={'center':'Persistence barcode'}>

Persistence Diagram

By examining the persistence barcode plot, one can observe the distribution and lengths of the bars. Longer bars indicate more persistent topological features, while shorter bars represent features that appear and disappear quickly. The legend displayed with legend=True provides additional information about the types of topological features represented in the barcode.

This visualization allows for the identification of significant topological features and their persistence across different scales. It provides insights into the robustness and stability of these features in the dataset, helping to reveal important structural patterns and understand the underlying topology of the data.

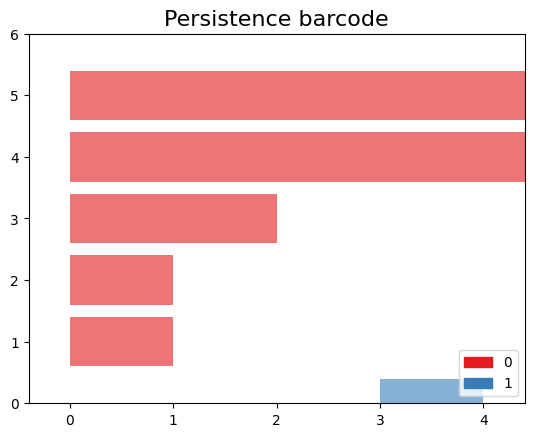

Exercise 1(Intermediate): Creating a Manually Filtered Simplicial Complex.

In the following graph, we have \(K\) a simplicial complex filtered representation of simplicial complexes.

Exercise 1 Filtration > Perform persistent homology and plot the persistence diagram and barcode. > > ## Solution
> > Step 1: Create a SimplexTree with gd.SimplexTree(). > > ~~~ >> st = gd.SimplexTree()
>> ~~~ >> {: .language-python}
>> Step 2: Insert vertices at time 0 using st.insert() > > ~~~ >> #insert 0-simplex (the vertex), >> st.insert([0]) >> st.insert([1]) >> st.insert([2]) >> st.insert([3]) >> st.insert([4]) >> ~~~ >> {: .language-python}
>> Step 3: Insert the remaining simplices by setting the filtration time using st.insert([0, 1], filtration=). > > ~~~ >> #insert 1-simplex level filtration 1 >> st.insert([0, 2], filtration=1) >> st.insert([3, 4], filtration=1) >> #insert 1-simplex level filtration 2 >> st.insert([0, 1], filtration=2) >> #insert 1-simplex level filtration 3 >> st.insert([2, 1], filtration=3) >> #insert 1-simplex level filtration 4 >> st.insert([2, 1,0], filtration=4) >> ~~~ >> {: .language-python}
>> Step 4: Perform persistent homology using st.persistence(). > > ~~~ >># Compute the persistence diagram >> persistence_diagram = st.persistence() >> ~~~ >> {: .language-python}
>> Step 5: Plot the persistence diagram. > > ~~~ >># plot the persistence diagram >> gd.plot_persistence_diagram(persistence_diagram,legend=True) >> ~~~ >> {: .language-python}
>> Step 6: Plot the barcode. > > ~~~ >> gd.plot_persistence_barcode(persistence_diagram,legend=True) >> ~~~ >> {: .language-python}
>> Step 7: Get this output
>> >> Persistence Diagram >>
> {: .solution} {: .challenge}

Example 2: Rips complex from datasets

In this example, we will demonstrate an application of persistent homology using a dataset generated by us. Persistent homology is a technique used in topological data analysis to study the shape and structure of datasets.

Generate dataset

The make_circles() function from scikit-learn’s datasets module is used to generate synthetic circular data. We specify the number of points to generate (n_samples), the amount of noise to add to the data points (noise), and the scale factor between the inner and outer circle (factor).

The generated dataset consists of two arrays: circles and labels. The circles array contains the coordinates of the generated data points, while the labels array assigns a label to each data point (in this case, it will be 0 or 1 representing the two circles).

PYTHON

from sklearn import datasets  # Import the datasets module from scikit-learn

# Generate synthetic data using the make_circles function
# n_samples: Number of points to generate
# noise: Standard deviation of Gaussian noise added to the data
# factor: Scale factor between inner and outer circle
circles, labels = datasets.make_circles(n_samples=100, noise=0.06, factor=0.5)

# Print the dimensions of the generated data
print('Data dimension: {}'.format(circles.shape))

OUTPUT

Data dimension:(100, 2)

Plot dataset

PYTHON

fig = plt.figure()  # Create a new figure
ax = fig.add_subplot(111)  # Add a subplot to the figure
ax = sns.scatterplot(x=circles[:,0], y=circles[:,1], s=15)  # Create a scatter plot using seaborn
plt.title('Dataset with N=%s points'%(circles.shape[0]))  # Set the title of the plot
plt.show()  # Display the plot

Plot Circles

Create Rips complex

First, we create a Rips complex using the RipsComplex class from gudhi. The Rips complex is a simplicial complex constructed from the given data points by connecting them with edges if their pairwise distances are below a specified threshold. In this case, we set the max_edge_length parameter to 0.6, which determines the maximum length allowed for an edge to be included in the complex.

PYTHON

%%time
# Create a Rips complex with a maximum edge length of 0.6
Rips_complex = gd.RipsComplex(points = circles, max_edge_length=0.6)

OUTPUT

CPU times: user 461 µs, sys: 88 µs, total: 549 µs
Wall time: 557 µs

Next, we create a simplex tree using the create_simplex_tree() method of the Rips_complex object. The simplex tree is a data structure that stores the information about the simplices in the complex. We specify max_dimension=3 to include simplices up to dimension 3 in the complex.

PYTHON

%%time
#Create a simplex tree from the Rips complex with a maximum dimension of 3
Rips_simplex_tree = Rips_complex.create_simplex_tree(max_dimension=3)

OUTPUT

CPU times: user 2.25 ms, sys: 0 ns, total: 2.25 ms
Wall time: 1.95 ms

Then, we retrieve the filtration order of simplices from the Rips_simplex_tree using the get_filtration() method. Filtration is a sequence of simplices ordered by their inclusion in the complex. We convert the filtration to a list using list().

PYTHON

%%time
# Get the filtration order of simplices
filt_Rips = list(Rips_simplex_tree.get_filtration())

OUTPUT

CPU times: user 108 ms, sys: 0 ns, total: 108 ms
Wall time: 121 ms

Simplicial homology

Finally, we compute the persistence of the Rips complex using the persistence() method of the Rips_simplex_tree. Persistence computes the birth and death values for each topological feature (connected components, loops, voids, etc.) in the complex. The result is assigned to the variable diag_Rips.

PYTHON

%%time
# Compute the persistence of the Rips complex
diag_Rips = Rips_simplex_tree.persistence()

OUTPUT

CPU times: user 9.13 ms, sys: 41 µs, total: 9.17 ms
Wall time: 8.82 ms

Plots the persistence diagram and barcode

The plot_persistence_diagram() function takes the persistence diagram (diag_Rips) as input and creates a scatter plot of the points. The birth and death values are used to determine the positions of the points in the diagram.

Additionally, the legend parameter is set to True, which displays a legend in the plot. The legend provides information about the colors or markers used to differentiate different topological dimensions or features.

PYTHON

%%time
# Plot the persistence diagram
gd.plot_persistence_diagram(diag_Rips, legend=True)

OUTPUT

<AxesSubplot:title={'center':'Persistence diagram'}, xlabel='Birth', ylabel='Death'>

Persistence diagram

The persistence barcode is another graphical representation of the persistence pairs obtained from the computation of persistent homology. It visualizes the birth and death values of topological features as intervals on a barcode-like plot.

The plot_persistence_barcode() function takes the persistence diagram (diag_Rips) as input and creates a barcode plot. Each bar in the plot represents a topological feature, and its length corresponds to the persistence or lifetime of the feature. The x-axis represents the range of values for the birth and death of the features.

The legend parameter is set to True in order to display a legend in the plot. The legend provides information about the colors or markers used to differentiate different topological dimensions or features.

PYTHON

gd.plot_persistence_barcode(diag_Rips,legend=True)

OUTPUT

<AxesSubplot:title={'center':'Persistence barcode'}>

Bard Code

Example 3: Rips complex from datasets

We are using the gudhi library to load a 2D point cloud data from a CSV file and visualize it using matplotlib.

First, we import the necessary modules from gudhi to work with datasets and construct the Alpha complex. We import _points from gudhi.datasets.generators to generate points and AlphaComplex to construct the Alpha complex.

PYTHON

from gudhi.datasets.generators import _points
from gudhi import AlphaComplex

We use the requests.get() function to send a GET request to the specified URL and retrieve the content of the file. The content is stored in the response object, and we extract the text content using response.text.

The text content is then loaded into a NumPy array using np.loadtxt(). The content.splitlines() splits the text content into lines, and delimiter=' ' specifies that the values in each line are separated by a space.

Finally, we visualize the loaded data by plotting the points using plt.scatter(). The data[:, 0] and data[:, 1] select the first and second columns of the data array, representing the x and y coordinates respectively. The marker='.' specifies the marker style as a dot, and s=1 sets the marker size. The points are then displayed using plt.show().

PYTHON

# Load the file spiral_2d.csv from the specified URL
url = 'https://raw.githubusercontent.com/paumayell/topological-data-analysis/gh-pages/files/spiral_2d.csv'

# Get the content of the file
response = requests.get(url)
content = response.text

# Load the data into a NumPy array
data = np.loadtxt(content.splitlines(), delimiter=' ')

# Plot the points
plt.scatter(data[:, 0], data[:, 1], marker='.', s=1)
plt.show()

Plot Spiral

we are using the AlphaComplex class from the gudhi library to construct an Alpha complex from the loaded 2D point cloud data.

First, we create an instance of the AlphaComplex class, alpha_complex, by passing the data array to the points parameter. This initializes the Alpha complex object and prepares it to construct the complex based on the given points.

Next, we create a simplex tree using the create_simplex_tree() method of the alpha_complex object. The simplex tree is a data structure that stores the information about the simplices in the Alpha complex. It represents the hierarchy of simplices in the complex, from the lowest-dimensional simplices (vertices) to higher-dimensional simplices (e.g., edges, triangles).

By calling create_simplex_tree(), we construct the simplex tree based on the Alpha complex. The simplex tree contains information about the simplices, such as their filtration values and filtration order.

The simplex_tree object can be further utilized to analyze and extract topological features and their persistence from the constructed Alpha complex. It provides various methods for computing persistence, extracting persistence diagrams, and performing other topological computations.

Overall, the code segment constructs the Alpha complex from the 2D point cloud data and creates a simplex tree to store the resulting complex’s information. This allows for subsequent topological analysis and computations on the constructed complex using the simplex_tree object.

PYTHON

# Construct an Alpha complex from the data points
alpha_complex = AlphaComplex(points=data)

# Create a simplex tree based on the Alpha complex
simplex_tree = alpha_complex.create_simplex_tree()

OUTPUT

CPU times: user 5.04 s, sys: 0 ns, total: 5.04 s
Wall time: 5.06 s
diag = simplex_tree.persistence()
diag = simplex_tree.persistence(homology_coeff_field=2, min_persistence=0)
print("diag=", diag)

gd.plot_persistence_diagram(diag)

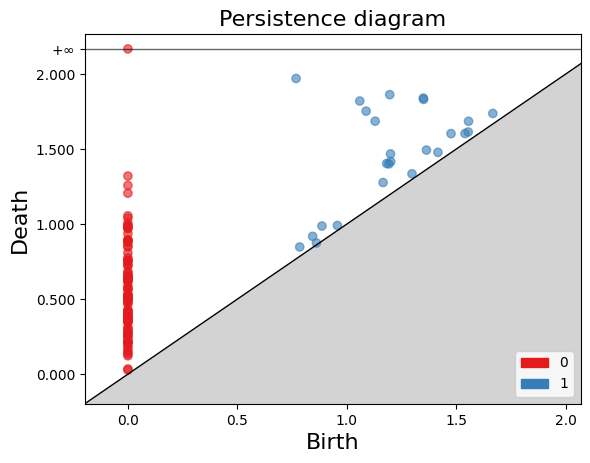

OUTPUT

<AxesSubplot:title={'center':'Persistence diagram'}, xlabel='Birth', ylabel='Death'>

{: .language-python} Persistence diagram

PYTHON

gd.plot_persistence_barcode(diag)
plt.show()

OUTPUT

/opt/tljh/user/envs/TDA2/lib/python3.7/site-packages/gudhi/persistence_graphical_tools.py:83: UserWarning: There are 229062 intervals given as input, whereas max_intervals is set to 20000.
  % (len(persistence), max_intervals)

Bard Code

PYTHON

%%time
gd.plot_persistence_barcode(diag,legend=True)
Challenge

Exercise 2(Intermediate): Constructing a Torus and Analyzing Persistent Homology.

Use the tadasets.torus(n=num_points) function to generate a dataset representing a torus. Ensure that num_points is an integer specifying the number of points to generate. Once you have generated the torus, apply persistent homology techniques to analyze the topology of the dataset.

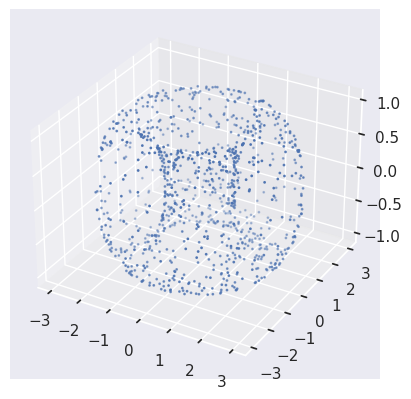

Exercise 2 Torus

PYTHON

#pip install tadasets
import tadasets
import gudhi
import matplotlib.pyplot as plt
# Generate torus points
torus = tadasets.torus(n=100)
# Create a Rips complex from the torus points
rips_complex = gudhi.RipsComplex(points=torus)
# Obtain the simplicial complex
simplicial_complex = rips_complex.create_simplex_tree(max_dimension=2)
# Compute the persistent homology of the simplicial complex
persistence = simplicial_complex.persistence()
# Plot diagrams
gudhi.plot_persistence_diagram(persistence, legend=True)
plt.show()

Bard Code

Caution

FIXME

Add something more to the keypoints

Key Points
  • GUDHI is a TDA tool
  • GUDHI uses simplextree objects to efficiently store simplicial complexes
  • GUDHI allows creating simplicial complexes from datasets, distance matrices, simulated data, and manually
